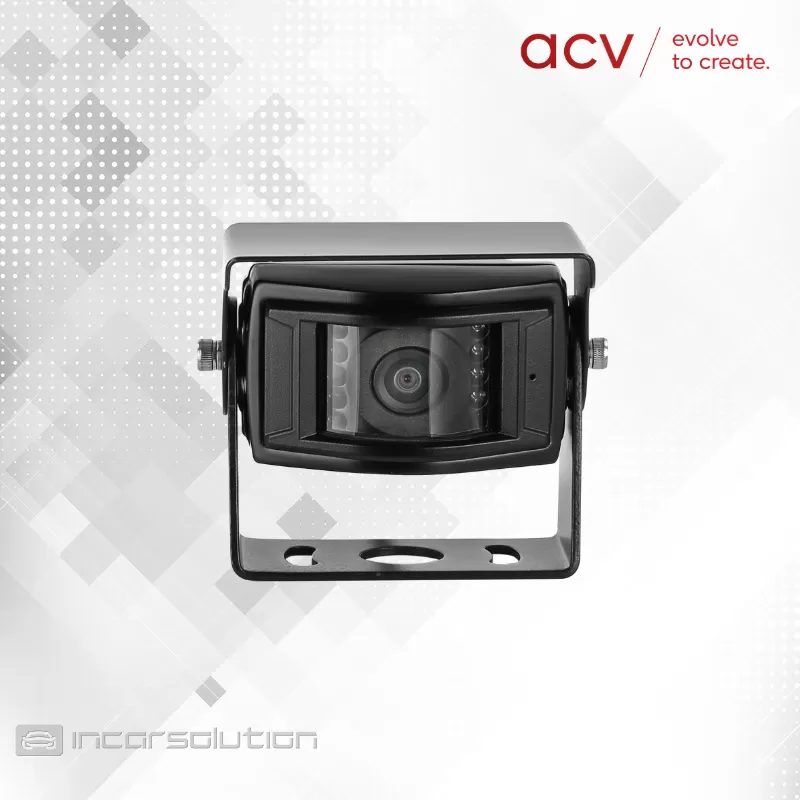

Universal Reverse Camera
€199.00
Tax included
Ref: AC7710006012
A front and reverse camera has become an indispensable accessory for any car. Recognising the importance of this safety feature, Incarsolution offers a wide range of front and reverse cameras that meet all the standards. Say goodbye to blind spots and guesswork as our cameras provide a clear and comprehensive view of the area behind your vehicle while reversing. By choosing Incarsolution, you're opting for a brand that prioritizes quality and adheres to stringent quality standards.
A front and reverse camera has become an indispensable accessory for any car. Recognising the importance of this safety feature, Incarsolution offers a wide range of front and reverse cameras that meet all the standards. Say goodbye to blind spots and guesswork as our cameras provide a clear and comprehensive view of the area behind your vehicle while reversing. By choosing Incarsolution, you're opting for a brand that prioritizes quality and adheres to stringent quality standards.
Design: metal
Color: black
Extras: guiding lines via jumper / night view function
Image sensor: 1/4" CCD
TV system: NTSC color
Effective pixels: 728 x 512
Lens: 1,9mm / F 2.0
Lux: 0 Lux with activ night view
Resolution: 600 TV lines
Lens angle: diagonal 170°
View angle: horizontal 113° vertical 80° +5°
IP Rating: IP68
Terminal: 8 Pin system connector(m) Ø7mm
Operating voltage: +12V DC
Power supply: +12V DC
Current consumption: 200mA with active night view
Operating temperature: -30°C - 75°C
Storage temperature: -40°C - 85°C
Measurements with brackets: L / W / H - 76 mm / 60,39 mm / 73,8 mm
Pigtail at the camera 3m +/-:
8 Pin system connector(m) Ø7mm
1 jumper
Adapter harness 20cm +/-:
8 Pin system connector(f) Ø10mm > 4 Pin acv-system connector(m)
Extension cable 15m +/-:
4 Pin acv-system connector(f) Ø10mm / 4 Pin acv-system connector(m) Ø5,2mm
Power wire red 3m +/- inlay cable: connection to camera / connection reverse light to monitor
Ground/GND wire black 3m +/- inlay cable: connection car body direct/GND to camera / car body direct/GND to monitor
Connector cable 20cm +/-:
4 Pin acv-system connector(f) Ø10mm
Red: power supply
bBack: GND
RCA(m) yellow: video
To ensure compatibility, we recommend that the parts pictured in our listing are compared to the actual parts in your vehicle before you make your purchase. If still unsure please contact us via email system so we can advise before you make your purchase.
