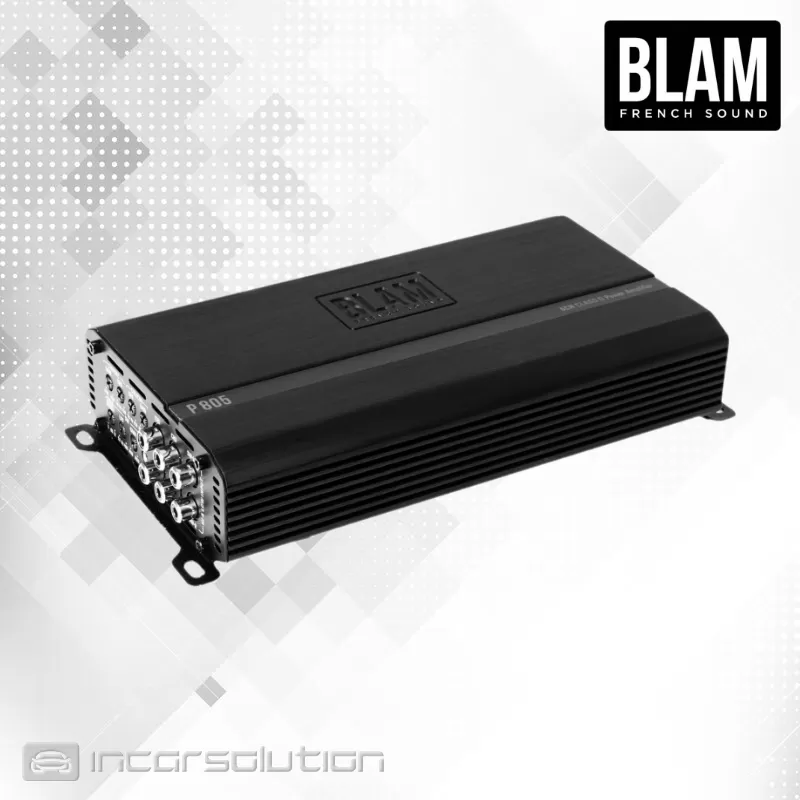

BLAM Power P805 5-Ch Amplifier Class D

The POWER range is a collection of amplifiers designed to deliver exceptional sound quality and innovative features, meeting the demands of the most discerning music lover. Combining power, clarity, performance and reliability, it has been designed to enhance every listening moment and transform your audiophile experiences into truly exceptional moments.

The P805 5-channel Class D amplifier combines power and versatility to drive both your speakers and subwoofer. Compact and powerful, it delivers up to 4 x 140 W RMS + 1 x 600 W RMS while delivering clear and dynamic sound reproduction. Thanks to its adjustable filters, Bass Boost, and multiple protections, it ensures reliable installation and powerful sound in all audio configurations.

BLAM P805 5-Channel Class D Amplifier

Technical characteristics:
High level input with automatic 4-8V start-up
Low level RCA inputs: 0.25-6V
Power (4 Ohms): 4 x 80 Watts RMS
Power (2 Ohms): 4 x 140 Watts RMS
Low-pass filter: 10 Hz – 250 Hz
High-pass filter: 10 Hz – 250 Hz

Subwoofer channel:
Power (4 Ohms): 1 x 220 Watts RMS
Power (2 Ohms): 1 x 400 Watts RMS
Power (2 Ohms): 1 x 600 Watts RMS
Low-pass filter: 50 Hz – 400 Hz
Adjustable Bass Boost 0-12 dB (45Hz)

Signal-to-noise ratio < > >90 dB
TDH < 0.15%
Frequency response: 10 Hz -50 kHz
Protections: short circuit / low impedance / polarity reversal / thermal protection
Dimensions (LxlxH) : 234 x 123 x 47 mm

Supplied accessories:
Instructions for use
Wired remote control included
High level input connector
Fixing screw with additional fuse
RCA Doubler
