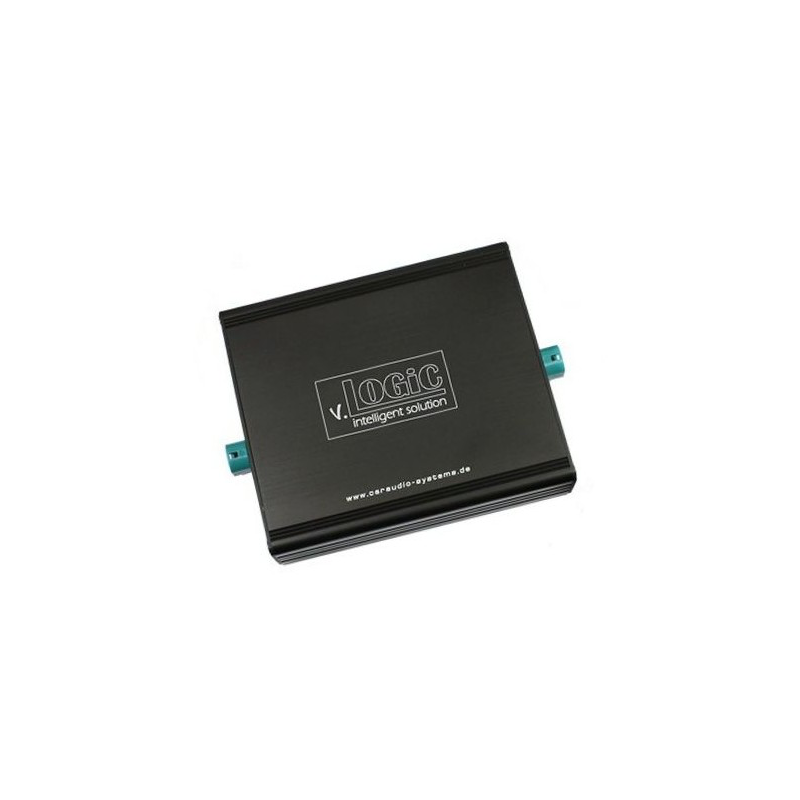

Video Reverse Camera Interface Mercedes NTG4.5 A B C CLA CLS E G GL GLA GLK ML SLK SL Class

v.LOGiC V4-NTG45

Car video interfaces provide inputs for external audio & video sources like navigation, front and rear view cameras, screen mirroring adapter and digital TV tuner with display on factory color screen. With a plug & play installation solution, all the original functions are still being maintained.

Product features
Plug and play media-controller with controls by factory infotainment (iDrive)
Own on-screen display and setup
3 AV-inputs
Controls of after-market devices (e.g. DVB-T tuner, DVD-player, DAB-Tuner) by factory infotainment (iDrive)
2 trigger outputs (+12V max. 1A), separately adjustable switching events
Video-in-motion
Rear-view camera input
Automatic switching to rear-view camera input on engagement of reverse gear from all operation modes
AV3 can be used for front camera (automatic on parking operation, automatic return at 20km/h
Manual switching to rear-view camera (only for vehicles with PDC button)
Manual return from rear-view and front camera (cancellation of automatic switching)
Picture-in-picture mode combining after-market rear-view and front camera picture(s) with factory parking sensor graphics
Compatible with all factory video accessories (e.g. rear-view camera, Top-View, Night vision, DVD-changer, TV-tuner)
Rear-seat-entertainment output for AV-sources connected to the v.LOGiC
USB update-port for software-updates by consumer

Navigation system
Audio 20 NTG4.5 (with 5.8" screen and 4Pin HSD connector)
Comand Online NTG4.5 (with 7" screen and 4Pin HSD connector)

How to identify your navigation system ?

Car compatibility
Mercedes A-Class (W176) 07/2012 → 08/2015
Mercedes B-Class (W246) 11/2011 → 10/2011
Mercedes C-Class (W204) 03/2011 → 10/2014
Mercedes C-Class Coupe (C204) 06/2011 → 06/2015
Mercedes CLA-Coupe (C117) 01/2013 → 09/2014
Mercedes CLS-Coupe (C218) 06/2011 → 07/2014
Mercedes E-Class (S/W212) 06/2011 → 10/2014
Mercedes E-Class Coupe (C207) 06/2011 → 05/2015
Mercedes G-Class (G463) 07/2012 → 08/2015
Mercedes GL-Class (X166) 11/2012 → 08/2016
Mercedes GLA-Class (X156) 09/2013 → 08/2015
Mercedes GLK-Class (X204) 01/2011 → 08/2015
Mercedes ML-Class (W166) 11/2011 → 07/2015
Mercedes SLK-Class (R172) 03/2011 → 09/2015
Mercedes SL-Class (R231) 2012 → 09/2015

Important notice
A factory audio-AUX input is required. On some head-units it is already activated. If not, it is necessary to code the head-unit to audio-AUX by diagnosis computer.

To ensure compatibility, we recommend that the parts pictured in our listing are compared to the actual parts in your vehicle before you make your purchase. If still unsure please contact us via email system so we can advise before you make your purchase.
